Industrial Silicone Tubing
Extruded silicone tubing and hose for fluid conveyance, cable protection, thermal insulation and general industrial applications. Over 5,000 tooling sets in stock for short lead times. Formulations from general-purpose to high-tear.
An industrial silicone tube is the choice when the operating environment rules out other elastomers: temperatures above +150 °C where EPDM rubber loses its properties, low-temperature flexibility requirements where PVC stiffens, chemical inertness towards process fluids, or simply when service life justifies the cost over lower-performance materials. VMQ silicone retains its mechanical properties across a continuous range of –60 to +200 °C, is inert to most aqueous fluids and does not degrade under UV or ozone exposure.
We manufacture industrial tubing and hose in VMQ silicone with two cure-system families: peroxide (Series 2) as the economical general-purpose formulation with the widest hardness range (10 to 90 Shore A), and platinum (Series 12) when higher purity, absence of cure by-products or food/medical certifications are required — at no additional formulation cost. For applications where the tube is subjected to severe mechanical stress — frequent assembly onto fittings, vibration, pulling during installation — the high-tear formulations (Series 1 peroxide, Series 10 platinum) double or triple the tear strength of standard silicones.
Bore sizes from 0.5 mm to 145 mm, with wall thicknesses from 0.5 mm. Over 5,000 tooling sets in stock cover the most common ID x wall thickness combinations, enabling short delivery lead times. For dimensions outside the catalogue, we manufacture new tooling in 2–4 weeks. Tolerances to ISO 3302-1 E1/E2. Manufactured under ISO 9001 with full traceability.
General-purpose tube or one with specific requirements?
If your application has no regulatory requirements (food-grade, medical, railway) and no extreme conditions (temperature > +200 °C, fuels, cyclic fatigue), a standard industrial tube in Series 2 or Series 12 is the most efficient solution. If you need food-contact certification, see our food-grade tubing. For medical devices, medical tubing. For service above +200 °C, high-temperature tubing. For peristaltic pumps, peristaltic tubing.
Which tube do you need?
Locate your primary requirement and the recommended formulation. If your application has specific sector requirements, consult the specialist pages linked in the related products section.
| Requisito | Formulación | Serie | Proceso |
|---|---|---|---|
| General-purpose with no specific requirements | VMQ Peroxide | Series 2 | Extrusion |
| General-purpose with higher purity / no post-cure | VMQ Platinum | Series 12 | Extrusion |
| Economical high tear | VMQ HT Peroxide | Series 1 | Extrusion |
| Premium high tear | VMQ HT Platinum | Series 10 | Extrusion |
| FDA/CE food contact | VMQ Platinum food-grade | Series 12 | Extrusion |
| Medical device / biocompatibility | VMQ Platinum biocomp. | Series 12 | Extrusion + Cleanroom |
| High temperature > +200 °C | VMQ native HT | Series 9 | Extrusion |
| Peristaltic pump | VMQ Cyclic fatigue | Series 30 | Extrusion |
| Steam / autoclave resistance | VMQ Steam | Series 14 | Extrusion |
| Pressure / vacuum | VMQ + reinforcement | Series 2, 12 | Multi-layer extrusion |
| Electrical conductivity / ESD | VMQ Conductive | Series 11 | Extrusion |
| Large bore (> 60 mm) | VMQ standard | Series 2, 12 | Extrusion to drawing |
Industrial tube types by construction

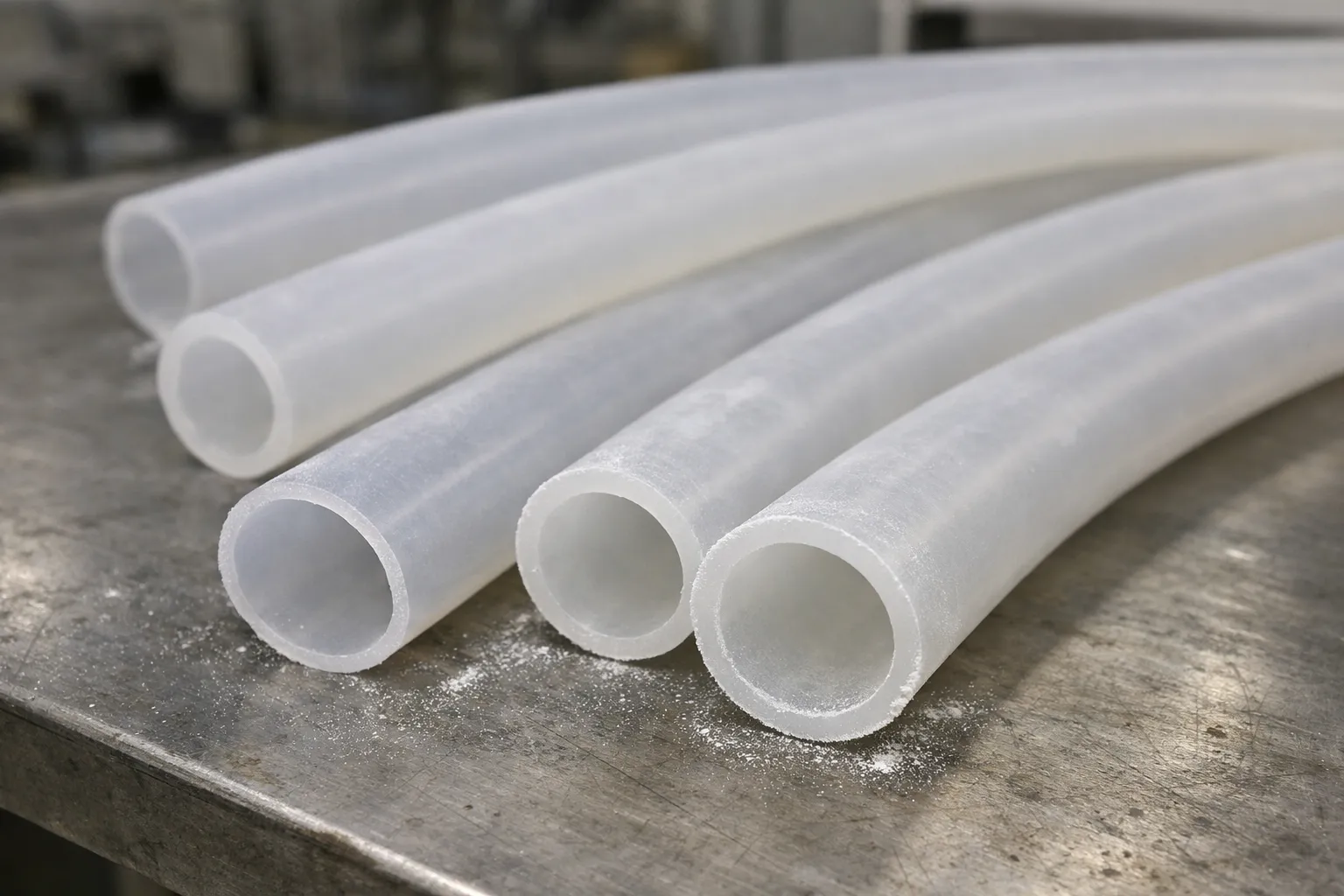

Plain single-layer tube
Circular cross-section with a homogeneous single-compound wall. This is the most versatile construction: it covers everything from air and water conveyance to cable protection and thermal insulation. Available in all catalogue formulations, translucent or coloured as required.

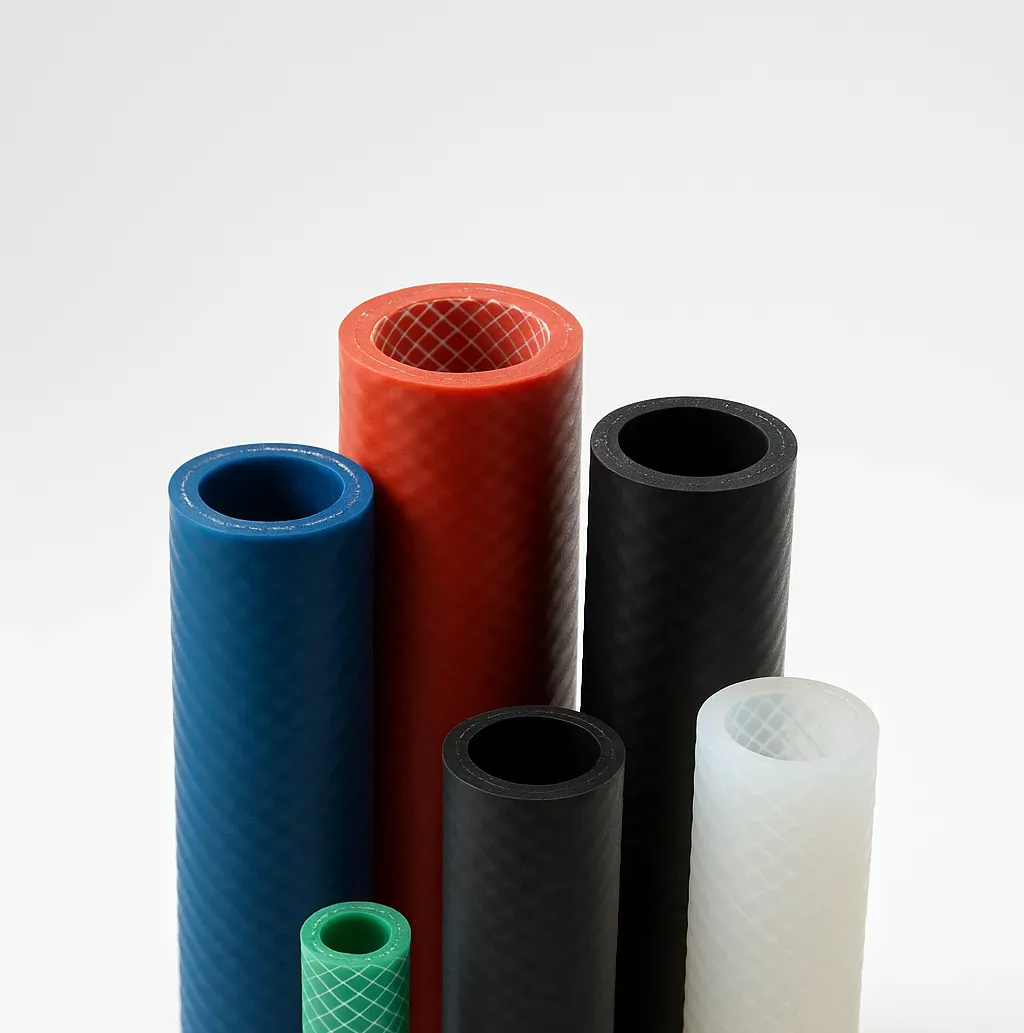

Mesh-reinforced tube
Silicone tube with polyester, aramid or stainless-steel mesh reinforcement embedded between two silicone layers. The reinforcement allows the tube to operate under internal pressure or vacuum without deformation, collapse or bulging. The inner layer remains smooth to minimise pressure drop.

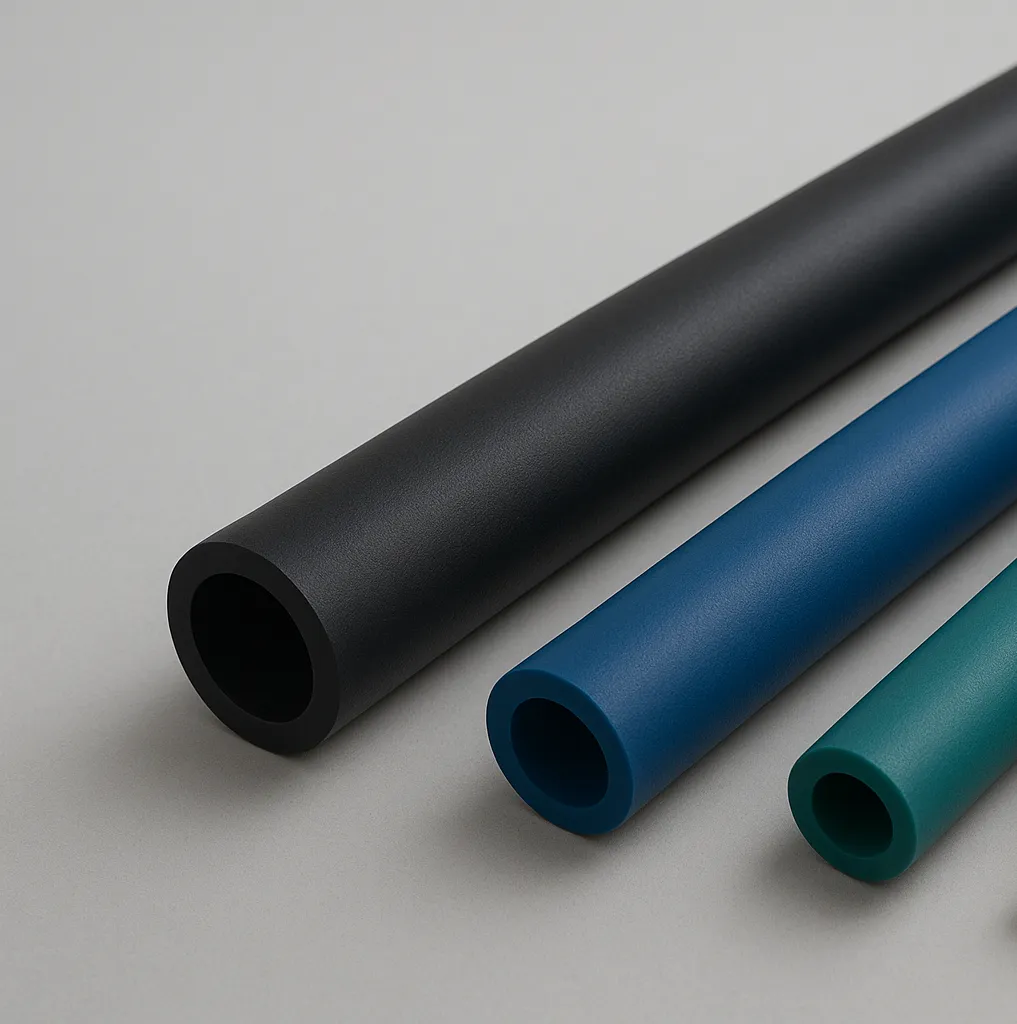

Cable and sensor protection tube
Silicone tubes designed to sleeve, insulate and protect electrical wiring, fibre optics, thermocouples and probes in environments with elevated temperature, vibration or chemical aggression. Silicone offers excellent dielectric insulation, UV/ozone resistance and permanent flexibility, avoiding the cracking that plastic sleeving develops over time.
Co-extruded bicolour or multi-material tube
Two or more silicone layers extruded simultaneously. This allows an inner layer with specific properties (conductive, food-grade, high-tear) to be combined with an outer layer of a different colour or formulation. This is not a painted tube: both layers are integral silicone with molecular adhesion between them.
Dimensional ranges by application
We hold over 5,000 tooling sets in stock covering the most common bore and wall-thickness combinations used in industry. This means short delivery lead times for the majority of standard dimensions. For specific ID x wall thickness combinations not held in stock, we manufacture new tooling in 2–4 weeks.
Micro-bore and small-diameter tubing
ID 0.5 to 6 mmSmall-bore tubes for precision pneumatic circuits, instrumentation, dosing and fine-cable protection. Wall thicknesses from 0.5 mm. The flexibility of silicone permits very tight bend radii without bore collapse.
- Inside diameter
- 0.5 to 6 mm
- Wall thickness
- 0.5 to 2 mm
- Typical supply form
- Coils of 25, 50 or 100 m
Formulations: Series 2 (economical), Series 12 (platinum), Series 11 (conductive/ESD).
General-purpose and connections
ID 6 to 20 mmStandard range for the majority of industrial applications: compressed-air conveyance, process water, cooling fluids and equipment connections. Compatible with quick-release couplings and standard hose clips.
- Inside diameter
- 6 to 20 mm
- Wall thickness
- 1 to 4 mm
- Typical supply form
- Coils of 10, 25 or 50 m
Formulations: Series 2 (economical), Series 12 (platinum), Series 10 (high tear), reinforced (pressurised).
Transfer and industrial process
ID 20 to 60 mmLarge-bore sizes for high-flow fluid transfer, equipment connection hoses, air ducting for ventilation systems and vacuum circuits. Wall thicknesses of 3 to 7 mm to balance flexibility with structural rigidity.
- Inside diameter
- 20 to 60 mm
- Wall thickness
- 3 to 7 mm
- Typical supply form
- Coils of 10 m or cut lengths
Formulations: Series 2 (economical), Series 12 (platinum), textile or metal reinforced.
Large-bore to drawing
ID 60 to 145 mmLarge-section tubes for connection sleeves, ventilation ducts, large-format equipment connections and special applications. Manufactured to drawing with dedicated tooling. Silicone retains its flexibility at these diameters where other elastomers become excessively rigid.
- Inside diameter
- 60 to 145 mm
- Wall thickness
- 4 to 10 mm
- Typical supply form
- Cut to length
Formulations: Series 2 (economical), Series 12 (platinum), metal reinforced (pressure/vacuum).
The most common dimensions (ID 3 to 50 mm in standard wall thicknesses) have tooling in stock. For ID x wall thickness combinations outside the catalogue, we manufacture new tooling with a lead time of 2–4 weeks. Tolerances: ISO 3302-1 class E1 (standard) or E2 to customer specification.
Which material does your industrial tube need?
VMQ Peroxide — economical general-purpose (Series 2)
The most versatile and economical formulation in the catalogue. Hardness range from 10 to 90 Shore A — the widest of all series. Good general mechanical properties. Requires post-cure.
General machinery, prototypes, compressed air, process water, cable protection, auxiliary circuits — any industrial application without specific regulatory requirements.
| Property | EQ240 | EQ250 | EQ260 | EQ270 | EQ280 |
|---|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 6.5 | 7.5 | 7.5 | 9.5 | 8.5 |
| Elongation (% min) | 500 | 400 | 400 | 300 | 250 |
| Tear strength (kN/m min) | 17 | 20 | 20 | 23 | 20 |
| Density (g/cm3) | 1.12 | 1.14 | 1.15 | 1.19 | 1.20 |
Temperature: –60 to +200 °C (extendable to +300 °C / +315 °C with HT additive). Raw-material certifications: FDA, CE 1935/2004, BfR, USP VI. Full hardness range 10 to 90 Shore A available (table shows the most common for tubing). Requires oven post-cure.
VMQ Platinum — premium general-purpose (Series 12)
Higher purity than Series 2: platinum catalysis generates no cure by-products. No post-cure required, reducing manufacturing lead times. Same formulation used for food-grade and medical — if the application later requires certification, there is no need to change series.
Industrial applications that value purity, absence of cure residues, shorter lead times (no post-cure), or that may need food/medical certification in the future.
| Property | EQ1240 | EQ1250 | EQ1260 | EQ1270 | EQ1280 |
|---|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 7 | 8 | 9 | 8.5 | 8 |
| Elongation (% min) | 700 | 750 | 650 | 550 | 250 |
| Tear strength (kN/m min) | 20 | 30 | 30 | 30 | 20 |
| Density (g/cm3) | 1.12 | 1.14 | 1.17 | 1.18 | 1.19 |
Temperature: –60 to +200 °C (extendable to +300 °C / +315 °C with HT additive). Certifications: FDA, CE 1935/2004, BfR, USP VI, ISO 10993. No post-cure. Hardness 20 to 90 Shore A. Mechanical properties superior to Series 2 at most hardnesses.
VMQ High tear — peroxide (Series 1)
For tubing subject to frequent assembly and disassembly onto metal fittings, pulling during installation or constant vibration. Tear strength of 26 to 40 kN/m — double that of Series 2 at the same hardness.
Connections with frequent assembly/disassembly, circuits subject to vibration, tubes routed through guides or pulleys, applications where the tube is handled intensively.
| Property | EQ140 | EQ150 | EQ160 | EQ170 |
|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 |
| Tensile strength (MPa min) | 6 | 7.5 | 8 | 8 |
| Elongation (% min) | 600 | 400 | 600 | 500 |
| Tear strength (kN/m min) | 26 | 35 | 40 | 35 |
| Density (g/cm3) | 1.12 | 1.14 | 1.17 | 1.19 |
Temperature: –60 to +200 °C. Certifications: FDA, CE 1935/2004, BfR. Peroxide-cured — requires post-cure.
VMQ High tear — platinum (Series 10)
The highest-performance mechanical combination: up to 55 kN/m tear strength with platinum catalysis. Exceptional for tubes press-fitted onto fittings, working with high-pressure clamps or subjected to severe mechanical stress. No post-cure.
Demanding industrial applications combining mechanical requirements with the need for purity, certification or shorter lead times.
| Property | EQ1040 | EQ1060 | EQ1070 | EQ1080 |
|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 8 | 8 | 9 | 8 |
| Elongation (% min) | 760 | 530 | 450 | 320 |
| Tear strength (kN/m min) | 33 | 50 | 40 | 40 |
| Density (g/cm3) | 1.12 | 1.19 | 1.20 | 1.24 |
Temperature: –60 to +200 °C. Certifications: FDA, CE 1935/2004, BfR, USP VI, ISO 10993. No post-cure. Tear strength of 50 kN/m at 60 Shore A — exceptional for silicone.
The most versatile and economical formulation in the catalogue. Hardness range from 10 to 90 Shore A — the widest of all series. Good general mechanical properties. Requires post-cure.
General machinery, prototypes, compressed air, process water, cable protection, auxiliary circuits — any industrial application without specific regulatory requirements.
| Property | EQ240 | EQ250 | EQ260 | EQ270 | EQ280 |
|---|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 6.5 | 7.5 | 7.5 | 9.5 | 8.5 |
| Elongation (% min) | 500 | 400 | 400 | 300 | 250 |
| Tear strength (kN/m min) | 17 | 20 | 20 | 23 | 20 |
| Density (g/cm3) | 1.12 | 1.14 | 1.15 | 1.19 | 1.20 |
Temperature: –60 to +200 °C (extendable to +300 °C / +315 °C with HT additive). Raw-material certifications: FDA, CE 1935/2004, BfR, USP VI. Full hardness range 10 to 90 Shore A available (table shows the most common for tubing). Requires oven post-cure.
Higher purity than Series 2: platinum catalysis generates no cure by-products. No post-cure required, reducing manufacturing lead times. Same formulation used for food-grade and medical — if the application later requires certification, there is no need to change series.
Industrial applications that value purity, absence of cure residues, shorter lead times (no post-cure), or that may need food/medical certification in the future.
| Property | EQ1240 | EQ1250 | EQ1260 | EQ1270 | EQ1280 |
|---|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 7 | 8 | 9 | 8.5 | 8 |
| Elongation (% min) | 700 | 750 | 650 | 550 | 250 |
| Tear strength (kN/m min) | 20 | 30 | 30 | 30 | 20 |
| Density (g/cm3) | 1.12 | 1.14 | 1.17 | 1.18 | 1.19 |
Temperature: –60 to +200 °C (extendable to +300 °C / +315 °C with HT additive). Certifications: FDA, CE 1935/2004, BfR, USP VI, ISO 10993. No post-cure. Hardness 20 to 90 Shore A. Mechanical properties superior to Series 2 at most hardnesses.
For tubing subject to frequent assembly and disassembly onto metal fittings, pulling during installation or constant vibration. Tear strength of 26 to 40 kN/m — double that of Series 2 at the same hardness.
Connections with frequent assembly/disassembly, circuits subject to vibration, tubes routed through guides or pulleys, applications where the tube is handled intensively.
| Property | EQ140 | EQ150 | EQ160 | EQ170 |
|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 50 | 60 | 70 |
| Tensile strength (MPa min) | 6 | 7.5 | 8 | 8 |
| Elongation (% min) | 600 | 400 | 600 | 500 |
| Tear strength (kN/m min) | 26 | 35 | 40 | 35 |
| Density (g/cm3) | 1.12 | 1.14 | 1.17 | 1.19 |
Temperature: –60 to +200 °C. Certifications: FDA, CE 1935/2004, BfR. Peroxide-cured — requires post-cure.
The highest-performance mechanical combination: up to 55 kN/m tear strength with platinum catalysis. Exceptional for tubes press-fitted onto fittings, working with high-pressure clamps or subjected to severe mechanical stress. No post-cure.
Demanding industrial applications combining mechanical requirements with the need for purity, certification or shorter lead times.
| Property | EQ1040 | EQ1060 | EQ1070 | EQ1080 |
|---|---|---|---|---|
| Hardness (±5 Shore A) | 40 | 60 | 70 | 80 |
| Tensile strength (MPa min) | 8 | 8 | 9 | 8 |
| Elongation (% min) | 760 | 530 | 450 | 320 |
| Tear strength (kN/m min) | 33 | 50 | 40 | 40 |
| Density (g/cm3) | 1.12 | 1.19 | 1.20 | 1.24 |
Temperature: –60 to +200 °C. Certifications: FDA, CE 1935/2004, BfR, USP VI, ISO 10993. No post-cure. Tear strength of 50 kN/m at 60 Shore A — exceptional for silicone.
From compound to validated industrial tube
Silicone tube extrusion follows a controlled process that ensures dimensional uniformity, concentricity and consistent mechanical properties throughout the entire production run.
Application sectors
Industrial
Tubing for general machinery, compressed air, cooling, cable protection and auxiliary circuits.
Food & Beverage
Tubing certified to FDA and CE 1935/2004 for direct contact with food and beverages.
Medical
Biocompatible tubing to USP VI and ISO 10993 manufactured in an ISO 8 cleanroom.
Pharmaceutical
Silicone tubing for pharmaceutical processing, biotech and production equipment.
Related products
Food-grade tubing
Silicone tubing certified to FDA and CE 1935/2004, platinum-cured for food contact.
Medical tubing
Biocompatible tubing to USP VI and ISO 10993 manufactured in an ISO 8 cleanroom.
High-temperature tubing
Tubing for continuous service up to +300 °C with thermally stable formulations.
Peristaltic tubing
Tubing optimised for peristaltic pumps with high cyclic-fatigue resistance.
Need industrial silicone tubing?
Tell us the bore size, the fluid being conveyed, the operating temperature and any additional requirements (pressure, certifications, chemical resistance). Our technical team will confirm the most suitable formulation, tooling availability and delivery lead time.
Request quotation
