Vulcanized Silicone Frame Gaskets
Silicone gaskets with closed geometry adapted for metallic or plastic frames. Vulcanized corners without breaking continuity. Hardness 10-90 Shore A. Compliance with FDA, EC 1935/2004, UL94, EN 45545-2, USP VI, and ISO 10993. Manufacturing under ISO 9001 and ISO 13485.
Process Principle
Vulcanized frame gaskets are manufactured by cutting extruded profiles or cords and vulcanizing their ends at the corners onto a metallic or plastic frame. This process ensures sealing continuity without fissures or weak points.
Materiales y formulaciones
Made from solid or sponge VMQ silicone with hardnesses from 10 to 90 Shore A. Certified food-grade, medical-grade, fire-retardant, antistatic, and high-temperature formulations. Compliant with FDA, EC 1935/2004, UL94, EN 45545-2, USP VI, and ISO 10993.
Geometries and Dimensions
Adaptation to rectangular, square, or special geometry frames. Profiles from Ø2 mm cord up to 50×50 mm profiles. Custom vulcanized corners with 90° or personalized angles.
Production Environments
Manufacturing in an industrial environment or ISO 8 cleanroom. Processes certified ISO 9001 and ISO 13485 with vulcanization control, batch traceability, and sealing performance tests.

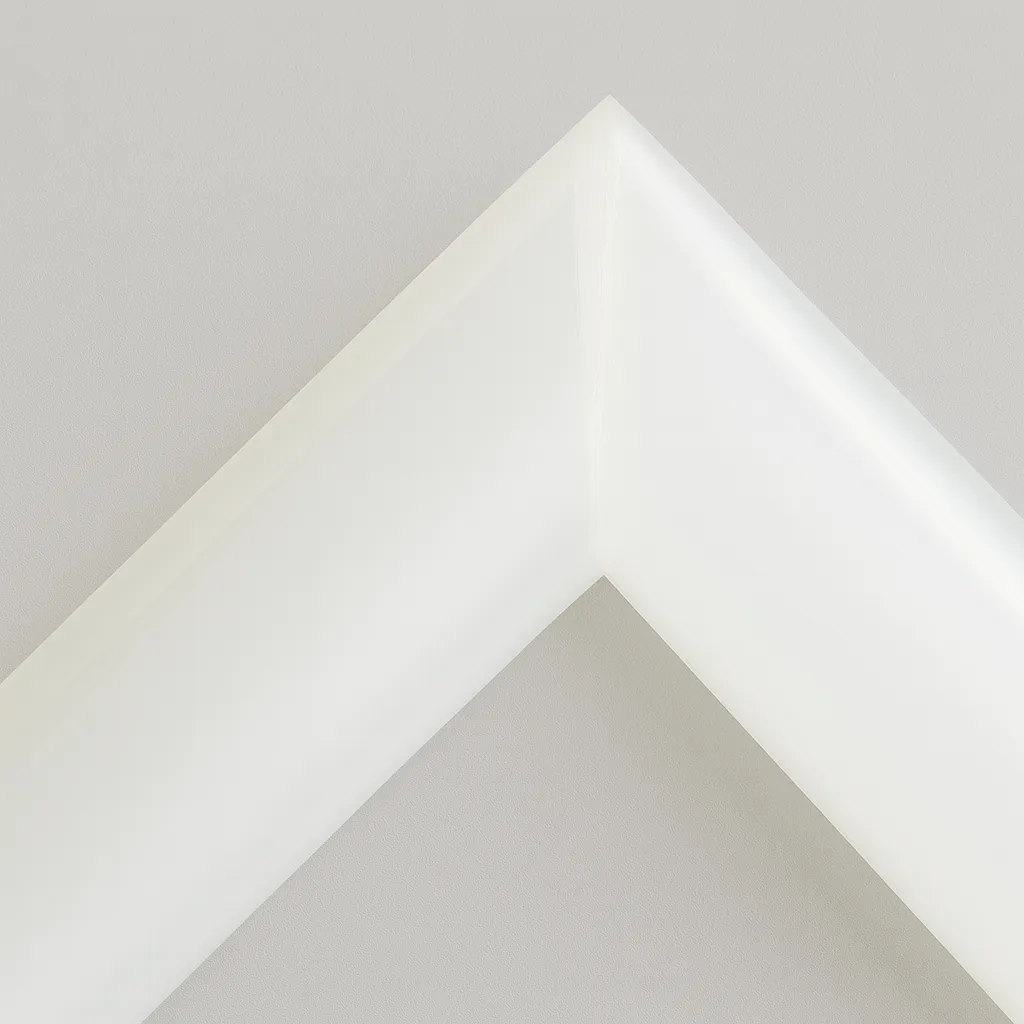

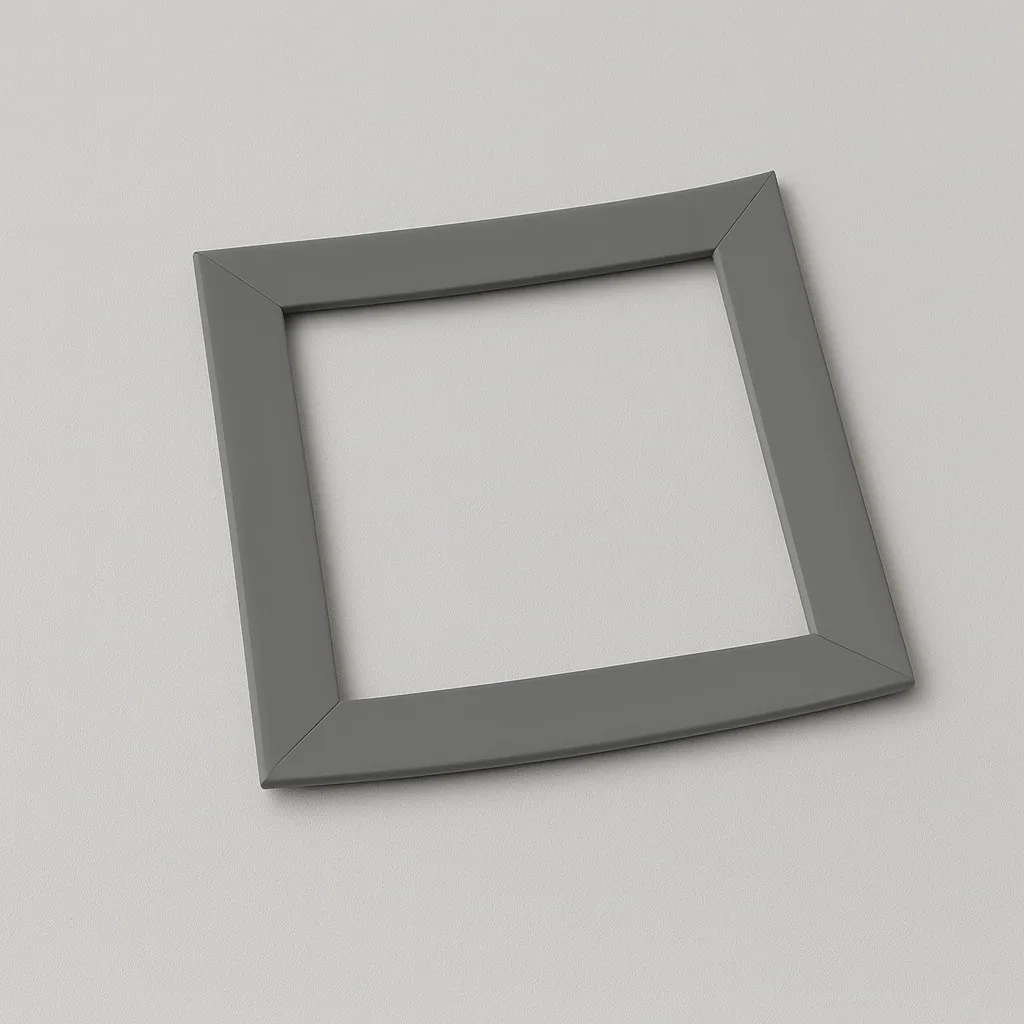

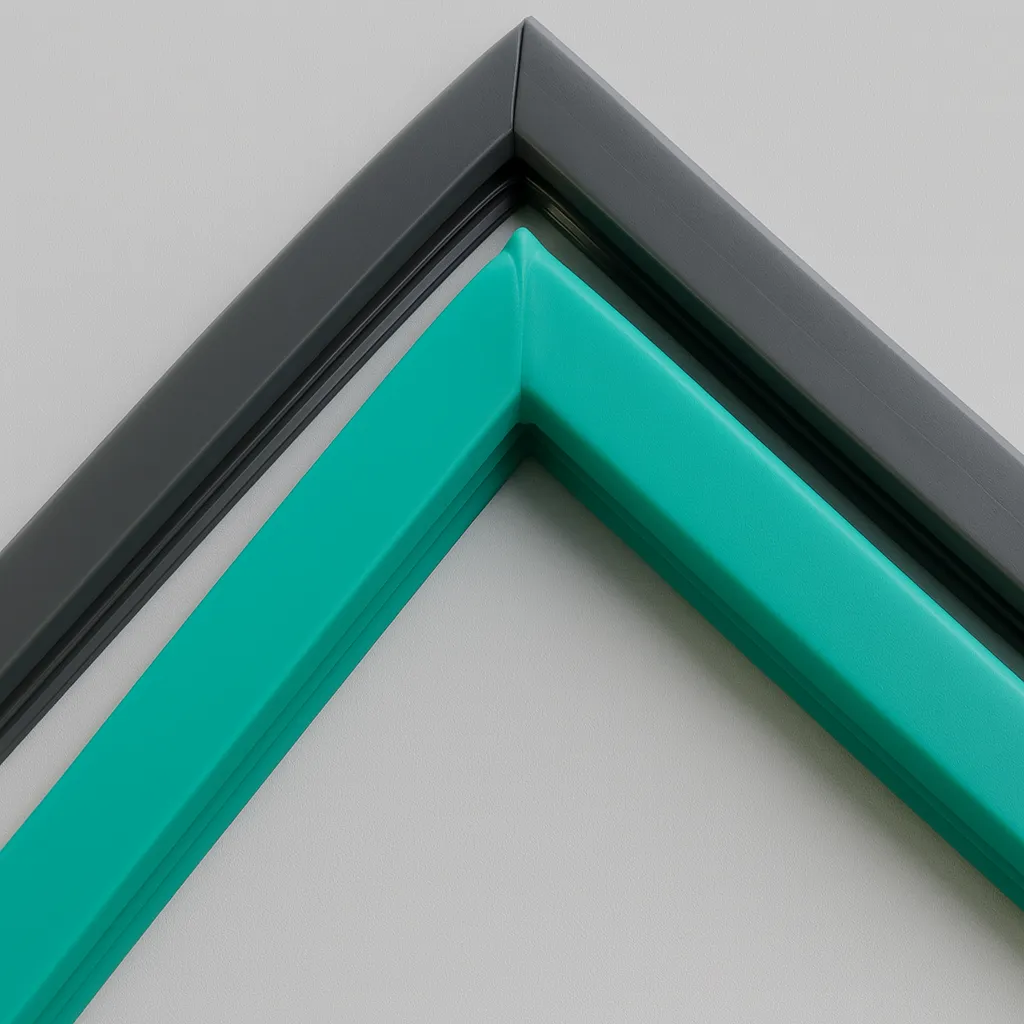

Product Gallery
Key Technical Data
Typical values obtained according to series datasheets and indicated standards. May vary based on hardness, formulation, and raw material. Final validation is the customer's responsibility.
| Property | Typical Values | Standard |
|---|---|---|
| Hardness (Shore A) | 20 – 90 | ISO 7619-1 |
| Tensile Strength | 6 – 12 MPa | ISO 37 |
| Elongation at Break | 200 – 600 % | ISO 37 |
| Tear Resistance | 15 – 30 kN/m | ISO 34-1 |
| Density | 1,11 – 1,20 g/cm³ | ISO 2781 |
| Working Temperature | –60…+250 °C | — |
| Tolerances | Extrusión E1–E3 · Longitudes L2–L3 | ISO 3302-1/-2 |
Certifications and Regulatory Compliance in Silicone Extrusion
Every extrusion process is backed by international certifications that guarantee traceability, safety, and regulatory conformity in highly demanding sectors.
Main Certifications
- ISO 9001:2015 – Quality Management
- ISO 13485:2016 – Medical Devices
- EN 9100 – Aerospace
- GMP – Good Manufacturing Practices
- Validated ISO 8 Cleanroom (550 m², ISO 14644-1 to -7)
Regulatory Compliance
- FDA 21 CFR 177.2600 – Food Contact
- EC 1935/2004 – Materials in Contact with Food
- EN 45545-2 – Railway Fire Protection
- UL94 – Material Flammability
- ISO 10993 and USP Class VI – Medical and Pharmaceutical Biocompatibility
- REACH (1907/2006) and RoHS (2015/863) – Chemical and Electrical Substances
Main Application Sectors
Key Applications
-
Gaskets for oven or autoclave doors
-
Seals for technical cabinets and enclosures
-
Window or industrial panel frames
-
Hermetic sealing systems in equipment
-
Perimeter gaskets in medical devices
-
Sealing for operating theatre air filter access lids (HVAC)
-
Gaskets for large-scale sterilisation chamber doors
-
Sealing in military vehicle window frames
-
Gaskets for food processing equipment control panels
-
Sealing for deck hatches on vessels (Naval)
-
Sealing gaskets for fixed-mount solar panels
-
Sealing for instrument panels in heavy machinery
-
Gaskets for ceramic drying kiln doors
-
Sealing in climatic chamber doors for water resistance tests
-
Perimeter gaskets for biosafety and sample handling equipment
-
Sealing for chemical fluid tank access lids
-
Safety gaskets in X-ray machine enclosures
-
Sealing in frame for level sight glasses in industrial tanks
-
Gaskets for high-speed train doors (Fire/Smoke certification)
-
Sealing in telecommunications rack cabinet doors
-
Gaskets for biogas digester lids
-
Sealing in low-temperature metal melting furnace doors
-
Gaskets for structural glazing in wind tunnels
-
Sealing in sanitary manhole cover frames
-
Isolation gaskets for temperature control panels
Manufacturing and Delivery Options
- Profiles: Cords, square, rectangular, or specialty
- Materials: Solid or cellular VMQ sponge
- Formulations: Food-grade, Medical-grade, Fire-retardant, Conductive, High-temperature
- Geometries: Rectangular, square, or custom
- Production: Industrial or ISO 8 Cleanroom
- Delivery: Mounted on the client's frame or with a ProSilicones64 frame
- Entrega: montadas sobre marco del cliente o con bastidor
Recommended Related Products
Product Selection Matrix
| Customer Requirement | Recommended Solution |
|---|---|
| Closed frame gaskets | Juntas vulcanizadas en marco |
| Seamless circular gaskets | Juntas vulcanizadas en aro |
| Cut flat gaskets | Flat Gaskets |
| Standard rectangular profiles | Rectangular Profiles |
| Perfiles rectangulares estándar | Rectangular Profiles |
Technical Conclusion and Recommendations
The vulcanized frame gaskets from ProSilicones64 offer perfect sealing, structural continuity, and exact adaptation to complex geometries.
Manufactured under ISO 9001 and ISO 13485 and certified to FDA, EC 1935/2004, UL94, EN 45545-2, USP VI, and ISO 10993, they guarantee reliability in industrial and sanitary environments.
A technical and economical solution for perimeter seals without break points.
Una solución técnica y económica para sellados perimetrales sin puntos de ruptura.
