Manufacturer of Silicone Sheeting and Plates
We manufacture flat silicone products using two complementary processes: calendering to obtain thin sheeting in continuous rolls, and casting to manufacture thick slabs and plates.
This semi-finished product, known in the industry as silicone sheeting, mats, or rubber sheets, serves as raw material for gasket die-cutting or as technical lining for machinery. Depending on the thickness and tolerance required, we supply in continuous rolls or individual plate format.
Sheet types

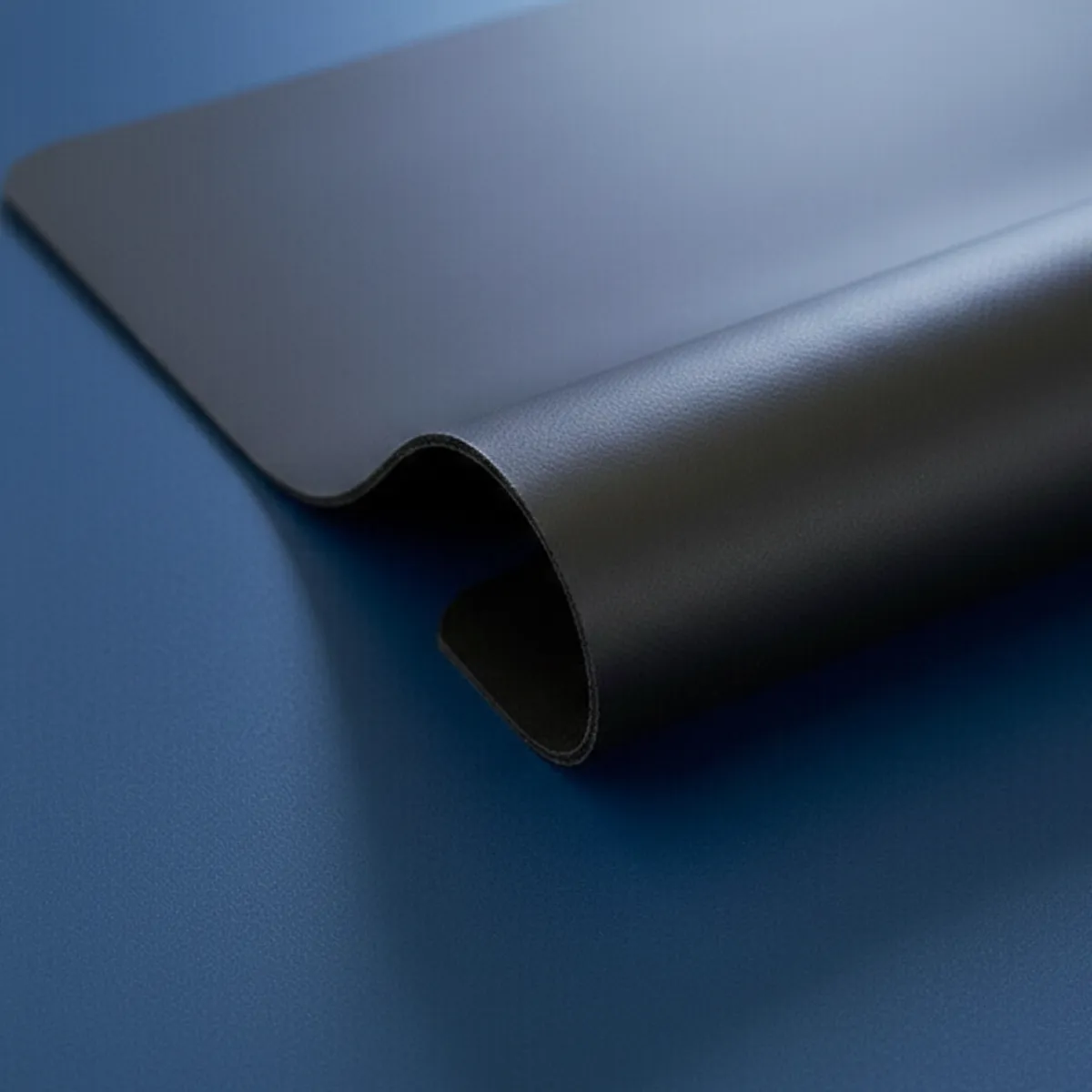

Calendered Silicone Sheeting
Calendered or extruded sheets of solid or sponge VMQ silicone. Thicknesses from 0.3 to 10 mm and widths up to 1,200 mm. Compliance with FDA, EC 1935/2004, UL94, EN 45545-2, USP VI, and ISO 10993. Delivered in rolls, spools, or custom-cut formats.
Cast Silicone Slabs/Sheets
Cast slabs/sheets of solid or cellular VMQ silicone, manufactured by pouring and controlled vulcanization. Thicknesses from 0.5 to 30 mm. Compliance with FDA 21 CFR 177.2600, EC 1935/2004, UL94, EN 45545-2, USP VI, and ISO 10993. Production in ISO 8 cleanroom or industrial environment under ISO 9001 and ISO 13485.
When to choose Calendered (Roll) vs. Cast (Plate)?
Calendered Sheeting: For thin and medium thicknesses (0.3 - 10 mm). As a continuous process, it is the most economical option for large surface areas. Used for membranes, industrial curtains, and die-cutting.
Cast Plate: For medium and high thicknesses (0.5 - 30 mm) where perfect flatness is required. The technical option for silicone blocks, damping pads, or thick single units.
Materials & Formulations
Solid Silicone: Hardness 10 to 90 Shore A.
Sponge Silicone: Closed-cell structure for thermal insulation.
Special Formulations: Food grade, Medical, Railway, Fluorosilicone.
Finishes & Presentation
Surface: Smooth, textured (fabric impression), or mirror finish.
Adhesive Backing: Option to supply sheets with PSA (Pressure Sensitive Adhesive) on one or both sides.
Colours: Translucent, white, red oxide, blue, and RAL.
Available Dimensions
Calendered: Thickness 0.3 to 10 mm | Max width 1,200 mm | Lengths 5-25 m.
Cast: Thickness 0.5 to 30 mm | Max plates 1,000 × 1,000 mm.
Tolerances: According to ISO 3302-1 Class M2/F (Cast) and E2 (Calendered).
Certifications
Food: FDA 21 CFR 177.2600, BfR, CE 1935/2004.
Medical: USP Class VI, ISO 10993.
Fire/Smoke: EN 45545-2, UL94 V0.
Looking for custom silicone sheeting?
Tell us thickness, format (roll or plate) and quantity. We cut to size and supply from single units to full pallets.
